StudioLive Series III - How to setup a Matrix Mix

Published June 17, 2021

Please be sure your firmware is updated on your StudioLive and that you are using the latest Universal Control:

StudioLive Series III Console - Firmware Update

StudioLive Series III Rack mixer - Firmware Update

Universal Control:

https://legacy.presonus.com/products/Universal-Control
=====================================================



Auxes will only output input channels.

A Matrix will output a mix of output channels.

Series III Matrix mixes allow for Input and Output channels to be mixed to a physical output.



There a multiple reasons for creating a Matrix mix, and often is used for mirroring an output to another physical output with separate DSP and Volume control.



Here are a few use-case examples:

  • Adding a Subwoofer with full-range signal from the Mains with separate EQ and Volume control.
  • Adding near/front field speakers
  • Broadcasting a copy of the Mains with separate DSP
  • Mirroring one Aux Mix to another physical output.
  • Add the Main Mix into a Monitor mix for performers on-stage.
  • Busing the Mains to additional rooms such as a cry-room or foyer.



Video Instructions can be found here:

StudioLive Series III - Pre- and Post-fade settings in StudioLive Series III digital mixers (Video)



StudioLive Series III Consoles:

  1. First, choose your [Mix #] from the the Bank on the left side of the console.
  2. Press [Select] on the Aux Mix Master
  3. Press the gear icon in the top-left corner of the StudioLive main-screen to open the Mix's settings.StudioLive_24_18.6.2021_13_21_21.png

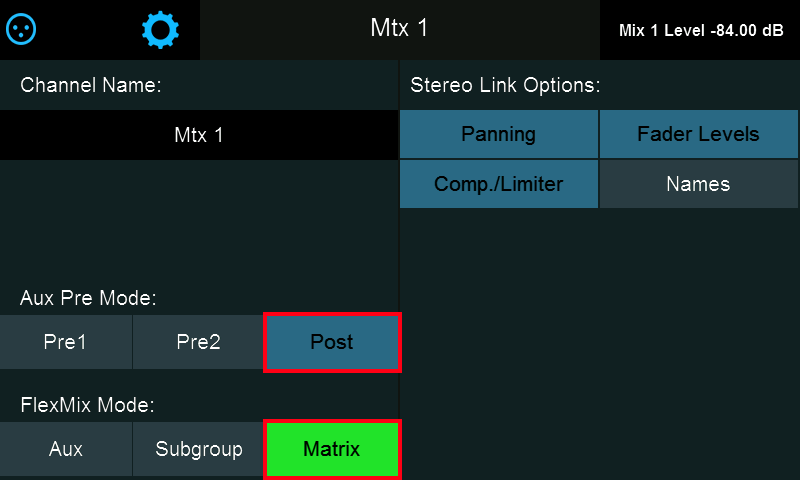

  4. Set the FlexMix Mode to "Matrix"StudioLive_24_18.6.2021_13_21_45_MATRIX.png
    • For the Matrix to bus the Mains verbatim, set the pre/post settings to "post". For the Matrix bus to be unaffected by the placement of the Main Mix fader set the pre/post settings to "Pre1/Pre2"
  5. Use the <Prev / Next> buttons on the left side of the StudioLive to page back or forward to find the "M1" fader- this is the Main L/R bus channel. Raise this fader to Unity (u).
  6. Be sure to raise the Mix Master fader to the desired volume as well.

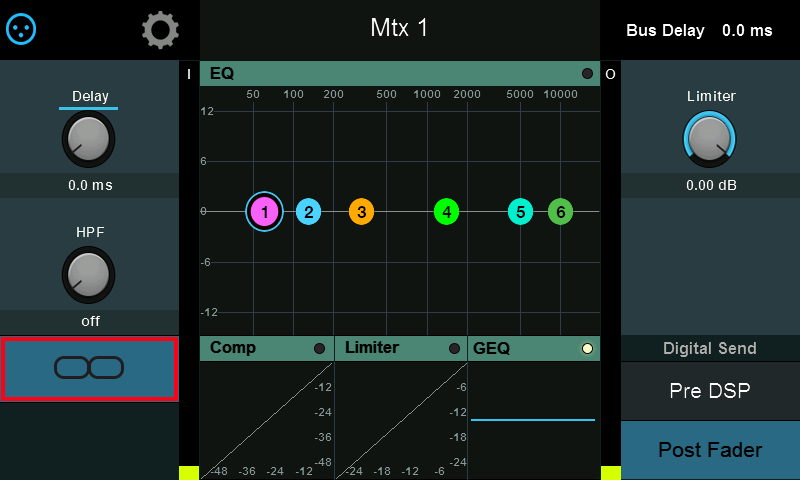

  7. Link your Mixes as stereo pairs as needed using the [Link] button or on-screen.StudioLive_24_18.6.2021_13_21_212222.png

Please note: StudioLive 64S consoles only support Matrix mix mode for Flexmixes 17-32.



StudioLive Series III Rack Mixer:

  1. First, choose your [Mix #] from the the Bank on the right side of Universal Control.
  2. Choose/Highlight on the Mix Master to the right-side of the screen Screenshot_2021-06-22_162807.jpg
  3. Once selected, in the top-left corner of Universal Control set the FlexMix Mode to "Matrix"Screenshot_2021-06-22_1706.jpg
    • (For the Matrix to bus the Mains verbatim, set the pre/post settings to "post". For the Matrix bus to be unaffected by the placement of the Main Mix fader set the pre/post settings to "Pre1/Pre2")
  4. Scroll to the right to find the "M1" fader- this is the Main L/R bus channel. Raise this fader to Unity.Screenshot_2021-06-22_163738edit.jpg
  5. Be sure to raise the Mix Master fader on the right to the desired volume as well.
  6. Link your Mixes as stereo pairs as needed using the [∞] button in the top-left corner. (see above)

=====================================================

Please contact PreSonus Technical Support by creating a Support Ticket at My.PreSonus.com/support for further assistance.
