StudioLive Series III: Why does it say that Interface mode is not available?

Published Oct, 2024.

For full information on Interface Mode, please see here

Link: https://support.presonus.com/hc/en-us/articles/360052084812-Series-III-Interface-Mode-WDM-Primer

=====

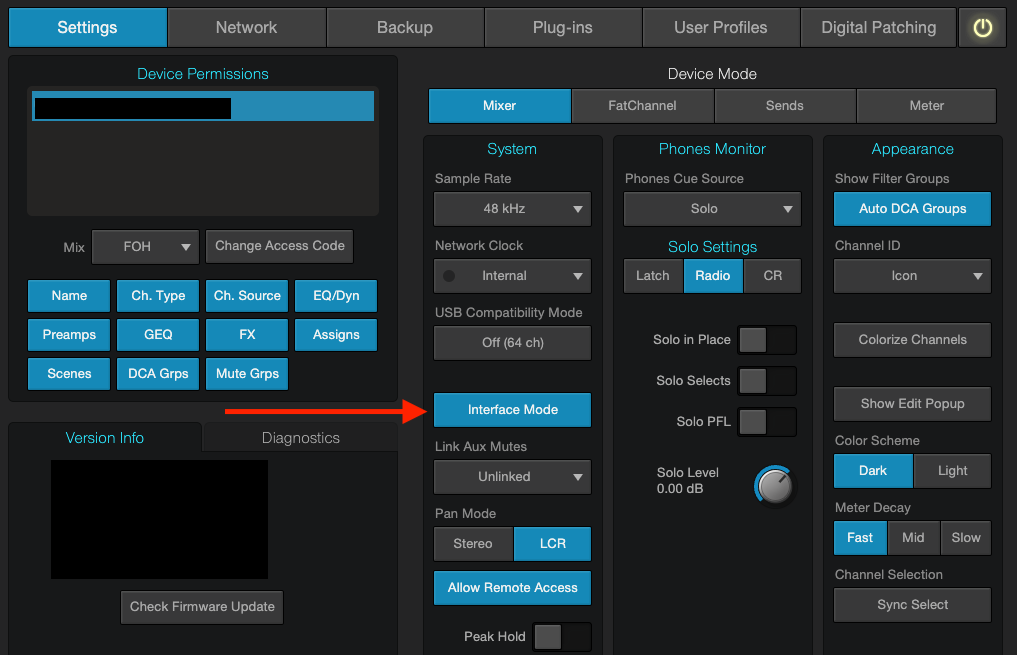

When your StudioLive Series III has "Interface mode" turned on, see picture,

Screenshot 2024-10-17 at 11.40.02.png

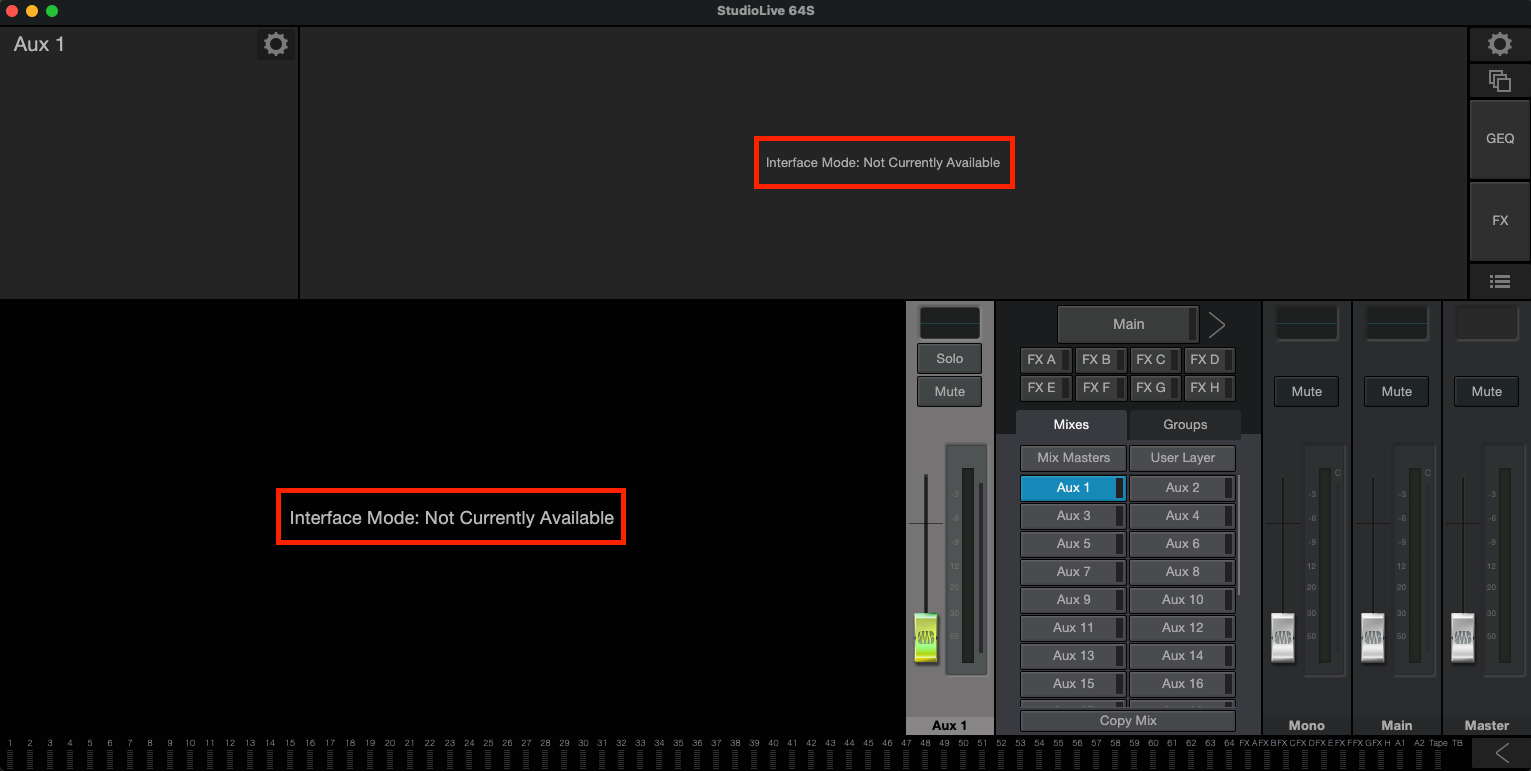

Then you see this when you select the AUX channel you see this,

Screenshot 2024-10-17 at 11.43.51.png

It does not mean Interface Mode is not available, it means you are in Interface Mode and the ability to control the AUX is now done from your DAW. The input type for the AUX is set to USB automatically which is what Interface Mode is all about.

If you don't want all your AUX channels to be control from the DAW and want them acting like a regular AUX, select the cog icon to change them back if you want a few or turn off Interface Mode and that will change them all. So you can have a mix of that type of AUX control.

Screenshot 2024-10-17 at 11.46.15.png

==================================================================

Please contact PreSonus Technical Support by creating a Support Ticket at My.PreSonus.com/support for further assistance.
